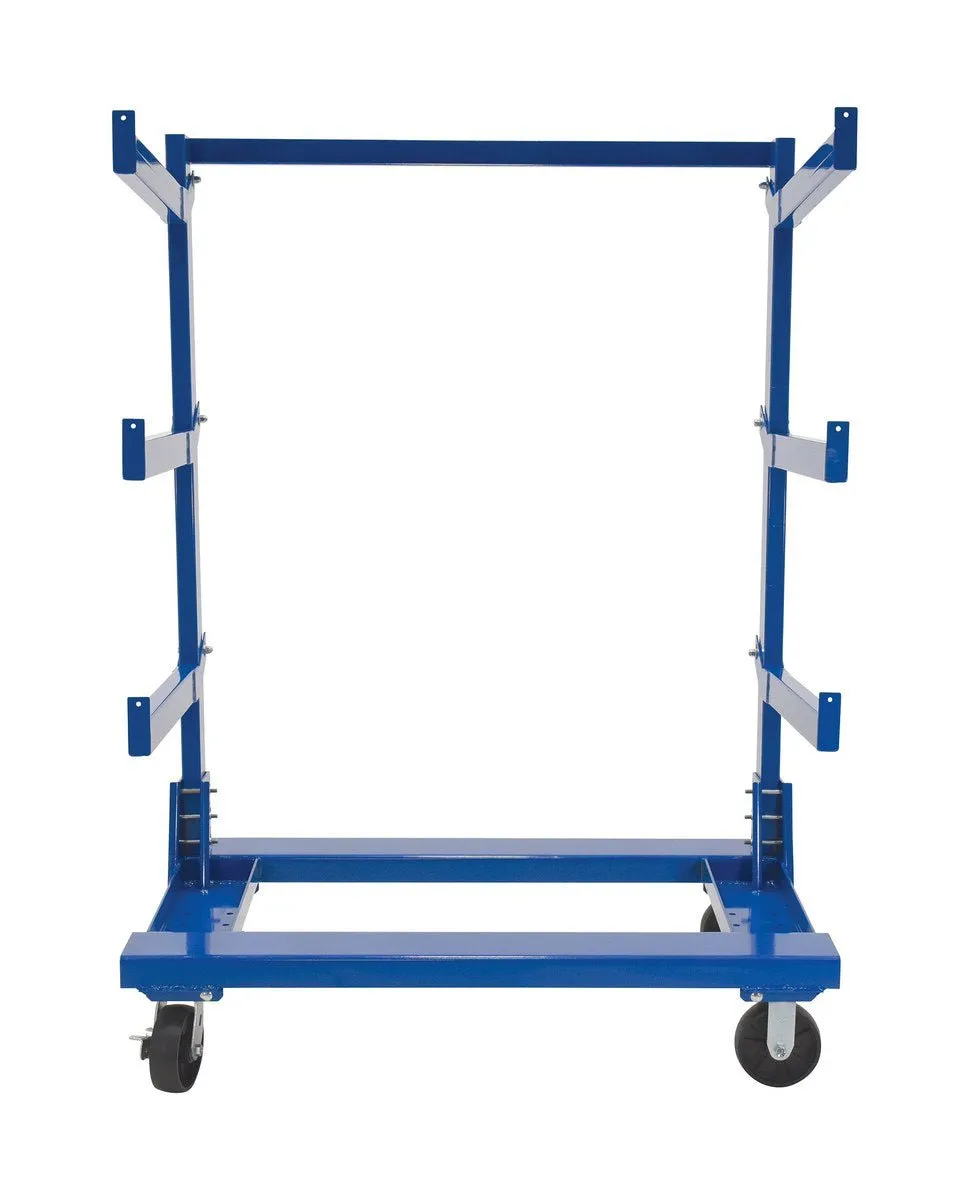

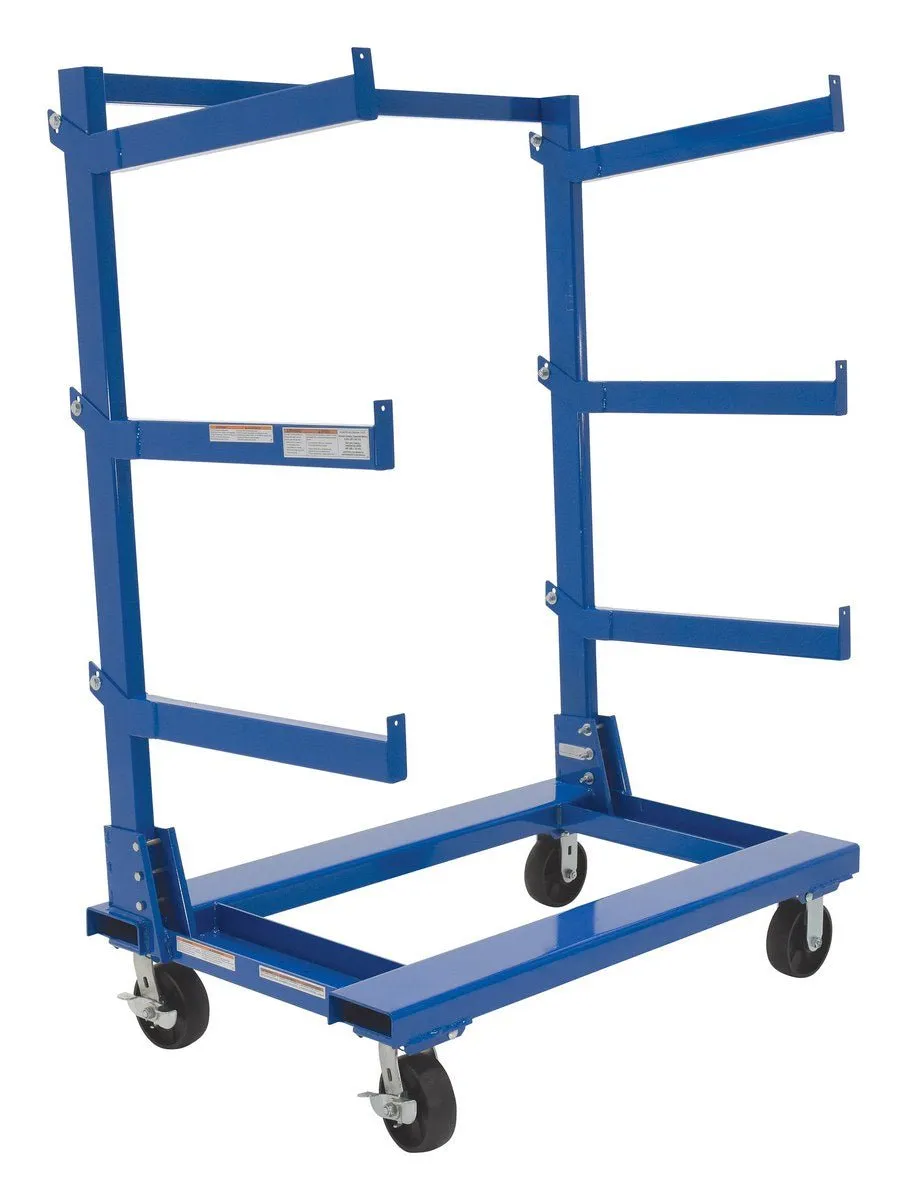

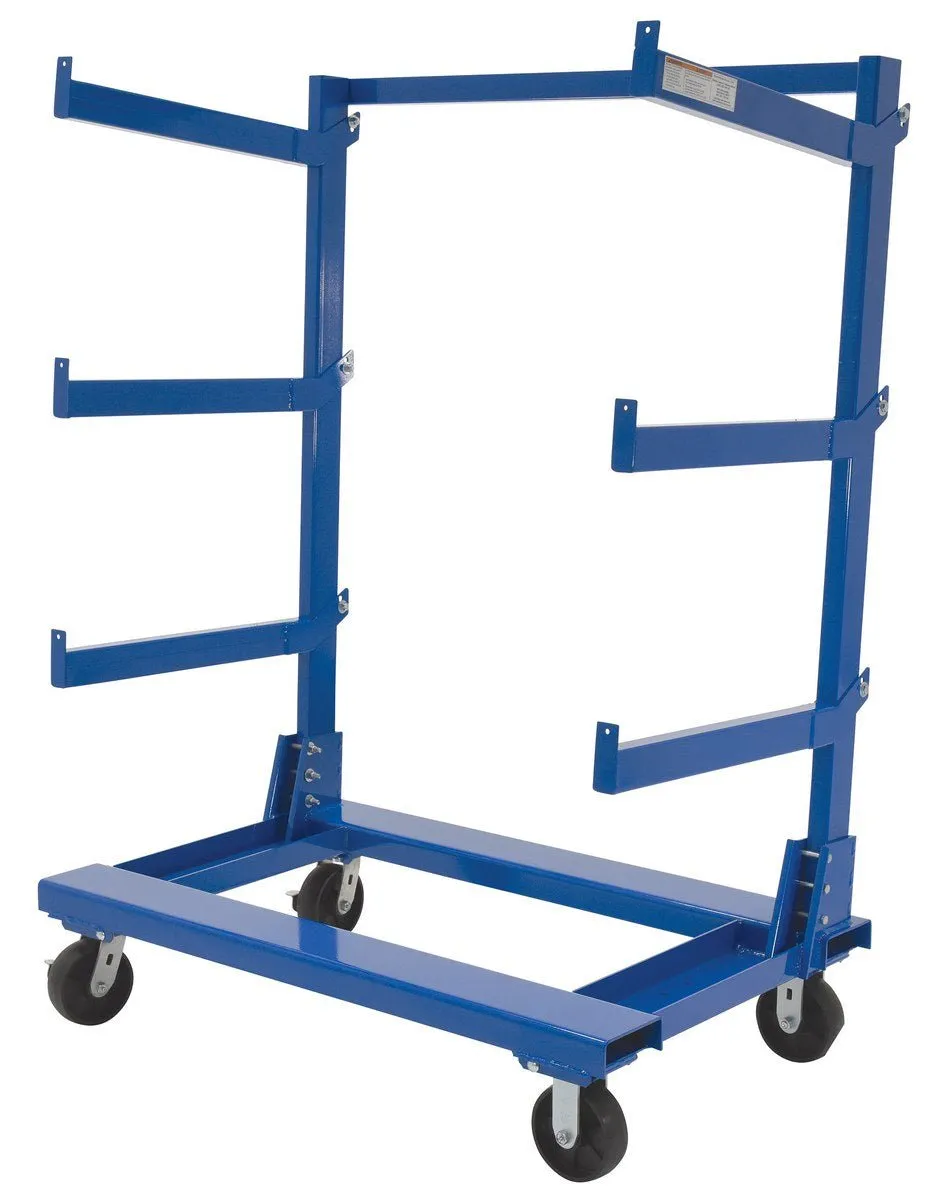

Portable Cantilever Cart for storage of bar stock type items. Each cart includes three pairs of arms. Arm height is adjustable in 6" increments.
Arms are secured to cart with a bolt and nut and each arm features two holes so that it may be attached in the level or inclined position. Height of lowest arm position is 18-3/4" while the highest position is 60-3/4". The 10" high base includes built in fork pockets that are 5-3/8"W x 2"H usable. Units roll on (2) rigid and (2) locking swivel 6" x 2" casters. All steel construction with blue baked-in powder-coated toughness.
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Cantilever Carts | |||||||
| Model | Image | PDFs | Overall Size (WxLxH) |
Usable Arm Length |
Uniform Load Capacity (lbs) |
Capacity Per Level (lbs) |
Wt. (lbs) |
| CANT-3048 | 30"x 48-9/16"x 64-11/16" | 24" | 2,000 | 400 | 212 | ||
| CANT-3648 | 36"x 48-9/16"x 64-11/16" | 30" | 2,000 | 400 | 226 | ||
| CANT-3060 | 30"x 60-9/16"x 64-11/16" | 24" | 2,000 | 400 | 225 | ||
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
